Radiant Large Straight

LIST PRICE IN US$
Price range: US$690.00 through US$1,490.00

Radiant Large Straight 12 Bar Towel Warmer
TWO SETS OF SETS OF 6 CLASSIC CYLINDRICAL BARS WITH TWO ADDITIONAL BARS ALSO INCLUDE INTEGRATED ON/OFF SWITCH

  • Ideal for drying and warming 2 large towels
  • Hybrid plug-in/hardwired model – Comes as a plug-in model, hardwiring kit included.
  • Curved Bar Version Available
  • Designed to be on continuously (energy efficient design)
  • Heats with an internal cable
  • Mount in any orientation
Swatch image Brushed Stainless
Brushed Bronze
Swatch image Matte Black
Swatch image Polished Stainless
Swatch image Satin Brass
Clear
SKU: RWHL-S Categories: , Tags: ,
Description

Product Features

  • Dry and warm towels and bathrobes; reduce laundry frequency
  • Use in laundry rooms, mud rooms and wet rooms to dry delicates, rain or ski jackets and bathing suits
  • 12 horizontal bars - all vertical and horizontal bars heat up
  • Offered in 5 different finishes: brushed stainless steel, polished stainless steel, matte black, Satin Brass, and Brushed Bronze.
  • Ideal for drying and warming 2 towels
  • Plug-in/hardwired combo towel warmer with integrated on/off switch
  • Rack heats up in 10-15min without a towel (click to learn more)​
  • 2 Year Warranty
  • Made of 304 stainless steel
  • ETL certified for use in USA and Canada
  • External Temperature Range - 120°F - 180°F
  • Made in China

PLUG-IN / HARDWIRED COMBO

FOR HARDWIRING:
ELECTRICIAN RECOMMENDED

WATTS:

150

AMPS:

1.25

BTUS:

512

Volts:

120

Dimensions

AS A PLUG-IN

WIDTH (inches) :

23.625

HEIGHT (inches) :

41.750

DEPTH (inches) :

5.750

CABLE LENGTH (inches) :

60

AS HARDWIRED

WIDTH (inches) :

24.5

HEIGHT (inches) :

41.75

DEPTH (inches) :

5.75
  • EXTERNAL TEMPERATURE RANGE: 120°F - 180°F
  • SAFETY CUTOUT: YES
  • SECURITY THERMOFUSE: N/A

Installation Guide

warranty

Technical Drawing

Faqs

Hardwiring your Radiant Collection Heated Towel Rack

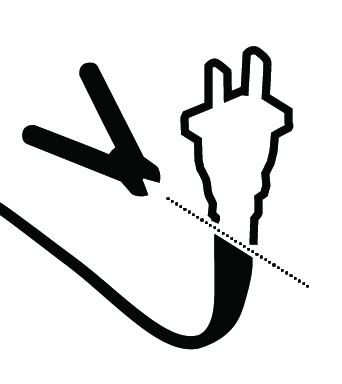

1. Cut the outlet plug off the end of the included power cable. Make sure to leave enough cable for your hardwiring needs.

2. Separate and strip the wires in the cable.

3. Thread the cable through the included power tube and cover plate.

4. Attach the tube and cover plate assembly to the back of the leg, concealing the point where the cable emerges from the frame.

5. After turning off the power on the circuit, prepare your junction box and power cable

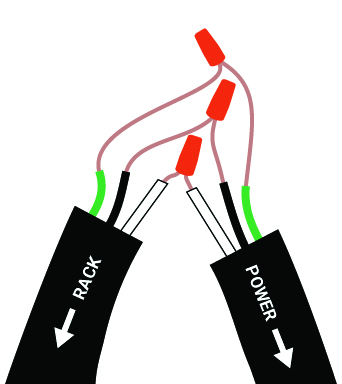

6. Connect the matching wires of the rack to the power cable safely with wire nuts.

7. Insert the wiring and caps into the junction box and secure the cover plate to it.

8. Make sure mounting brackets are installed to secure the rest of the rack to the wall.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Radiant Large Straight”

Your email address will not be published. Required fields are marked *

Videos

Radiant Collection Video

Radiant Installation Video
